Description

Details

Downloads

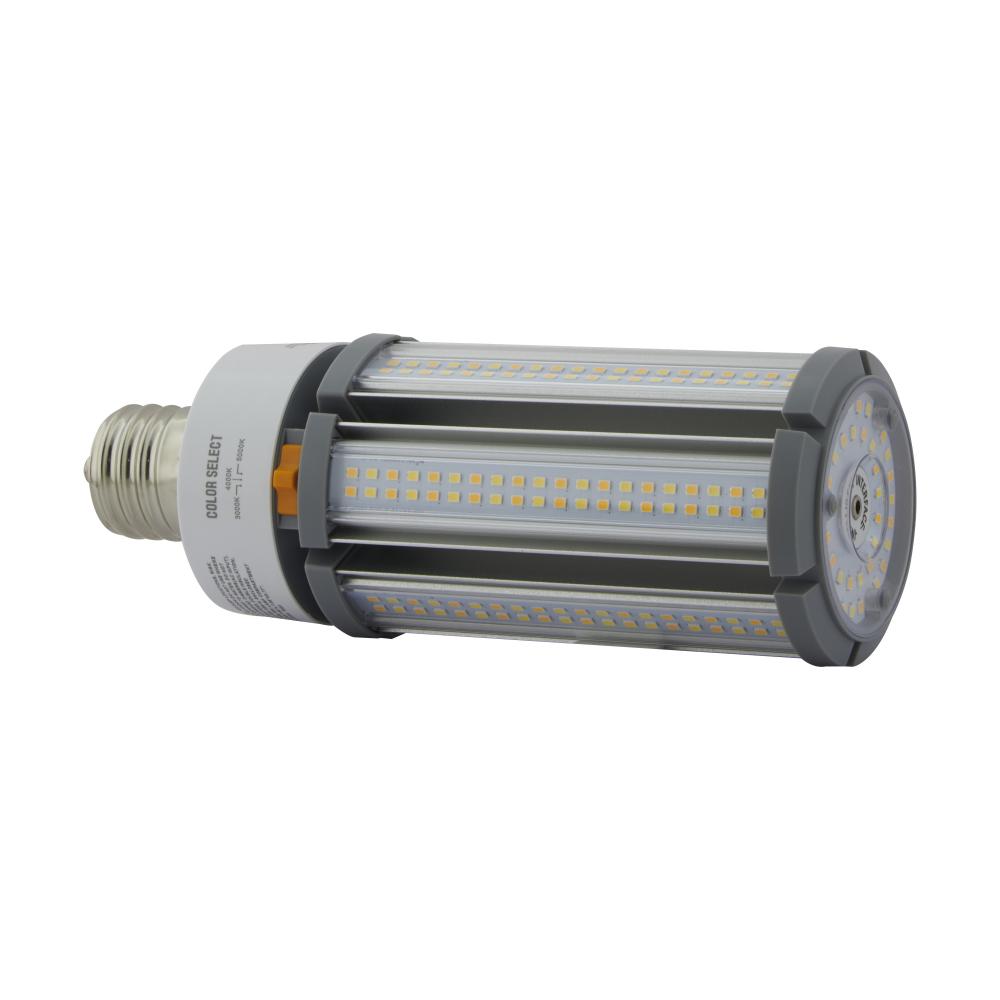

54 Watt; LED HID Replacement; CCT Selectable; Mogul extended base; 100-277 Volt; ColorQuick Technology

Vendor Item #:

S13142

Category:

Light Bulbs

Subcategory:

LED Bulbs

Category:

LED

Sub-Category:

HID Replacements

Volts:

120V-277V

Bulb Dimmable:

Yes-Dimmable

Bulb Hours:

50000

Bulb Kelvin:

3000K/4000K/5000K

Bulb Shape:

Corncob

Diameter:

3.35

EA Length:

3.65

Harmonized Codes:

8539.52.0091

Length:

9.800000000000001

Lumens:

7270L-7560L

Shap Carton Width:

3.65

Ship Carton Height:

10.96

Ship Weight:

1.91

Warranty:

5 Year Limited - Hi-Pro

Weight:

1.65

BAA Compliant:

Beam Spread:

360

Bulb ANSI Base:

EX39

Bulb Base:

Mogul Extended

Bulb Finish:

Clear

Burning Position:

Universal

Carton Cubic Feet:

0.08450000000000001

Cartons Per Unit:

CCT Selectable:

Yes

CEC:

Exempt - Base Not Regulated

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Color Temprature:

Warm to Cool White

Country Of Origin:

China

CRI:

80+

Dimmable Down To:

100 to 20 percent

Dimmable Function:

Dimmable with optional modules

DLC Approved:

Yes

DLC Classification:

Standard

DLC ID:

PLU9KZNB1EA1

DLC Primary Use:

Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)

Efficacy:

134.63/137.31/140.00 LPW

Enclosed Fixture Use:

Yes

FCC Compliant:

Yes

Feature 1:

MOL: 9.80 inches, MOD: 3.35 inches

Feature 2:

Clear Finish

Feature 3:

Material: Aluminum and Polycarbonate

Feature 4:

CCT Selectable

Feature 5:

Dimmable

Feature 6:

Universal Burning Position

Feature 7:

Damp location rated for indoor and outdoor use

Feature 8:

FCC and RoHS compliant

Feature 9:

5-year limited warranty

Has Emergency Battery:

HID Equivalent:

250W

Housing Color:

White/Grey

Incandescent Equivalent:

300W

Indoor Outdoor:

Indoor;Outdoor

Installation Notes:

Not for use in vapor tight fixtures.

IOT Enabled:

Yes

IP Rating:

IP64

JA8 Compliant:

Lamp Filament:

LED

Lens:

Yes

Lens Finish:

Clear

Lens Material:

Polycarbonate (PC)

Location Rating:

Damp

Long Description:

Satco's S13142 54-watt mogul extended base LED is one of the newest additions to the Hi-Pro LED family. This HID Replacement provides up to 75 percent in energy savings, advanced sensor port technology and is CCT selectable. The omni-directional light

Material:

Aluminum / Polycarbonate (PC)

Minimum Compartment Size:

Length: 7.88 in. Width: 7.88 in. Depth: 9.77 in.

NSF Approved:

Operating Frequency:

50/60Hz

Operating Temp:

-30C (-22F) to +45C (+113F)

Pack Type:

Box

Photocell:

Has Photocell

Power Factor:

0.9

Quantity In Pack:

R9 Value:

RoHS Compliant:

Yes

Romance Copy:

Satco's newest additions to the Hi-Pro LED family provides up to 75 percent in energy savings, advanced sensor port technology and are CCT selectable. The omni-directional light is designed to fully and safely illuminate higher ceiling installations su

SDS class:

LED_Lamp

Short Description:

54W/LED/HID/CCT/EX39/100-277V

Specification Notes:

This is not to be used with a ballast

Surge Protection:

Built-in surge protection - 4KV

Technology:

LED

Title 20 Compliant:

Exempt

Title 24 Compliant:

Total Harmonic Distortion:

Wattage Selectable:

Watts:

54W

Manufactured By:

Satco Products Inc.
